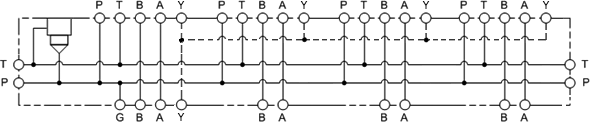

4 Station, Parallel circuit with relief cavity

Function

Function for VMM
Port Designators [ + ]
Modifiers Ports
VMM, /V Ports A, B, P: SAE 12; Port T: SAE 16; Port Y: SAE 6; Gage Port: SAE 4;
Technical Data [ + ]
Body Type Bar ManifoldBar Manifold
Interface ISO 05 - X&Y (US)ISO 05 - X&Y (US)
Body Features 4 Station, Parallel circuit with relief cavity4 Station, Parallel circuit with relief cavity
Mounting Hole Thread .375-16 UNC - 2B in..375-16 UNC - 2B in.
Mounting Hole Depth .75 in.19 mm
Mounting Hole Quantity 44
Open Cavities 11
Cavity T-3A
Port Size SAE 12SAE 12
FAQs [ + ]

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Notes [ + ]
  • For mounting bracket information, see catalog or drawing 991-021-***
  • Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
