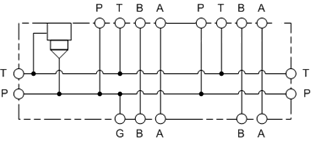

2 Station, Parallel circuit with relief cavity


Function for VNH
Port Designators [ + ]
Modifiers Ports
VNH Ports A, B, P: 3/4" NPTF; Port T: 1" NPTF; Gage Port: 1/4" NPTF;
Technical Features [ + ]

Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

Technical Data [ + ]
Body Type Bar ManifoldBar Manifold
Interface ISO 05ISO 05
Body Features 2 Station, Parallel circuit with relief cavity2 Station, Parallel circuit with relief cavity
Mounting Hole Thread .375-16 UNC - 2B in..375-16 UNC - 2B in.
Mounting Hole Depth .75 in.19 mm
Mounting Hole Quantity 44
Open Cavities 11
Cavity T-3A
Port Size 3/4" NPTF3/4" NPTF
FAQs [ + ]

There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Notes [ + ]
  • For mounting bracket information, see catalog or drawing 991-021-***
  • Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
